MERCK Milli-Q® IQ 7003/05/10/15 Water Purification Systems

The Milli-Q® IQ 7003/7005/7010/7015 system is a fully-integrated and modern water purification system delivering both superior quality ultrapure (Type 1) and pure (Type 2) water direct from a tap water source. It integrates Elix® electrodeionization (EDI) technology, intuitive touchscreens, Q-POD® ultrapure and E-POD® pure dispensers, and mercury-free UV lamps. The system provides an ergonomic and compact design to improve lab productivity, reduce waste and accelerate research.

Category: Tag:

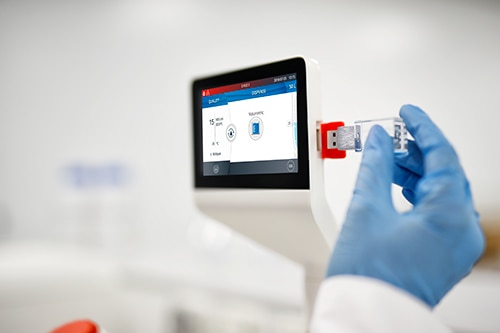

Effortless Data Management
Simplified data management is an integral part of the Milli-Q® IQ 7003/05/10/15 system. In a few clicks, download an individual Dispense Report, determine water quality over a specified time frame, allocate costs for shared resources, or create a customized report. Traceability is also ensured through the e-Sure tags on all consumables.

Simple, intuitive dispensing

You’ll always have convenient and easy access to purified water with our ergonomic Q-POD® ultrapure and E-POD® pure water dispensers. Just twist the dispense wheel or tap the touchscreen menu to access a range of dispensing functions.

Unparalleled ease of use

Choose a dispense option, instantly monitor water quality parameters, or rapidly retrieve data. Easy-to-navigate touchscreens on each POD dispenser give you quick access and control of essential system functions in just a few clicks.

Breakthrough Purification Technologies

Exclusive, advanced and sustainable purification technologies—including mercury-free ech2o® UV lamps, Elix® EDI technology and IQnano® ion-exchange resin—deliver highest-quality Type 1 and 2 water for your critical experiments.

The range of POD-Paks lets you further match water quality to your every application.

And with accurate, rapid and continuous resistivity and TOC monitoring directly on the POD touchscreens, you’ll always have full confidence in your water quality.

Assured protection of stored water

The redesigned intelligent pure water storage solution ensures that high-quality Type 2 water is always on hand and ready to use. Unique design features protect against stagnation and bacterial contamination, safeguarding the quality of stored pure water better than ever before.

Completely Mercury Free

The Milli-Q® IQ 7003/05/10/15 system is the first and only mercury-free tap to ultrapure water system with patented built-in ech2o® UV lamps.

Additionally, advanced RO purification, with its RO recovery loop, optimizes water recovery to reduce water consumption. Plus “LabClose” mode puts the system into hibernation, to save energy while preserving the system water quality when you are away from the lab.

Optimized lab space

Save valuable space as only the slim POD dispenser stays on the bench. The compact purification unit and the tank can be tucked away under the bench, on the wall, or a combination of both to best fit your lab’s space.

A range of production flow rates (3, 5, 10, 15 L/h) and tank size (25, 50, 100 L) options are available to ensure your lab’s needs can be met today and tomorrow.

For labs needing more than one point-of-use, up to 4 dispensers can be connected to one system (1 E-POD® and 3 Q-POD® units, or 4 Q-POD® units).

Water Specifications
Ultrapure, Type 1 water specifications1 (from Q-POD® dispenser)
Resistivity at 25 °C218.2 MΩ·cm
TOC≤ 2 ppb (µg/L)3; Typically ≤ 5 ppb
Particles4,5No particles with size > 0.22 µm
Bacteria6< 0.01 CFU/mL
Pyrogens (endotoxins)7< 0.001 EU/mL
RNases5< 1 pg/mL
DNases5< 5 pg/mL
Proteases5< 0.15 µg/mL
Flow rateUp to 2 L/min
1 These values are typical and may vary depending on the nature and concentration of contaminants in the feed water.
2 Resistivity can also be displayed non-temperature-compensated as required by USP.
3 In the appropriate operating conditions, otherwise typically ≤ 5 ppb.
4 With Millipak® filter.
5 With Biopak® polisher.
6 With Millipak® or Biopak® filter when installed and used in a laminar flow hood.
7 With Biopak® polisher when installed and used in a laminar flow hood.
Pure, Type 2 water specifications1
Resistivity at 25 °C2> 5 MΩ·cm; Typically 10-15 MΩ·cm
TOC≤ 30 ppb
Production flow rate3 L/h (Milli-Q® IQ 7003)
5 L/h (Milli-Q® IQ 7005)
From an E-POD® dispenser with final filter, the following water quality specifications are achieved:1
Particles3,4No particles with size > 0.22 µm
Bacteria5< 0.01 CFU/mL
Pyrogens (endotoxins)6< 0.001 EU/mL
RNases4< 1 pg/mL
DNases4< 5 pg/mL
Proteases4< 0.15 µg/mL
Flow rateUp to 2 L/min
1 These values are typical and may vary depending on the nature and concentration of contaminants in the feed water.
2 Resistivity can also be displayed non-temperature-compensated as required by USP.
3 With Millipak® filter.
4 With Biopak® polisher.
5 With Millipak® or Biopak® filter when installed and used in a laminar flow hood.
6 With Biopak® polisher when installed and used in a laminar flow hood.
Feed water requirements
Feed waterPotable tap water
Pressure1 – 6 bar
Conductivity< 2000 µS/cm at 25 °C
Total Organic Carbon (TOC)< 1 ppm
Temperature5 – 35 °C / 41 – 95 F
System Specifications



Electric power source voltage100 – 240 V ± 10%
Electric power source frequency50 – 60 Hz ± 10%
Purification Unit (7003/7005)
Dimensions (H x W x D)498 x 315 x 380 mm (19.6 x 12.4 x 15.0 in)
Operating weight26.0 kg (57 lb)
Purification Unit (7010/7015)
Dimensions (H x W x D)498 x 375 x 380 mm (19.6 x 14.8 x 15.0 in)
Operating weight (7010)29.7 kg (65 lb)
Operating weight (7015)30.0 kg (66 lb)
Storage tank
25 L
Dimensions (H x W x D)
Operating weight		503 x 400 x 415 mm (19.8 x 15.7 x 16.3 in)
31.7 kg (70 lb)
50 L
Dimensions (H x W x D)
Operating weight		706 x 400 x 415 mm (27.8 x 15.7 x 16.3 in)
57.6 kg (127 lb)
100 L
Dimensions (H x W x D)
Operating weight		1118 x 400 x 415 mm (44.0 x 15.7 x 16.3 in)
110.9 kg (244 lb)
Q-POD® and E-POD® dispensers
Dimensions (Maximum H x W x D)792 x 211 x 438 mm (31.2 x 8.3 x 17.3 in)
Operating weight5.5 kg (12.1 lb)
Electrical connectionPowered by purification unit (24 – 28 VDC)
